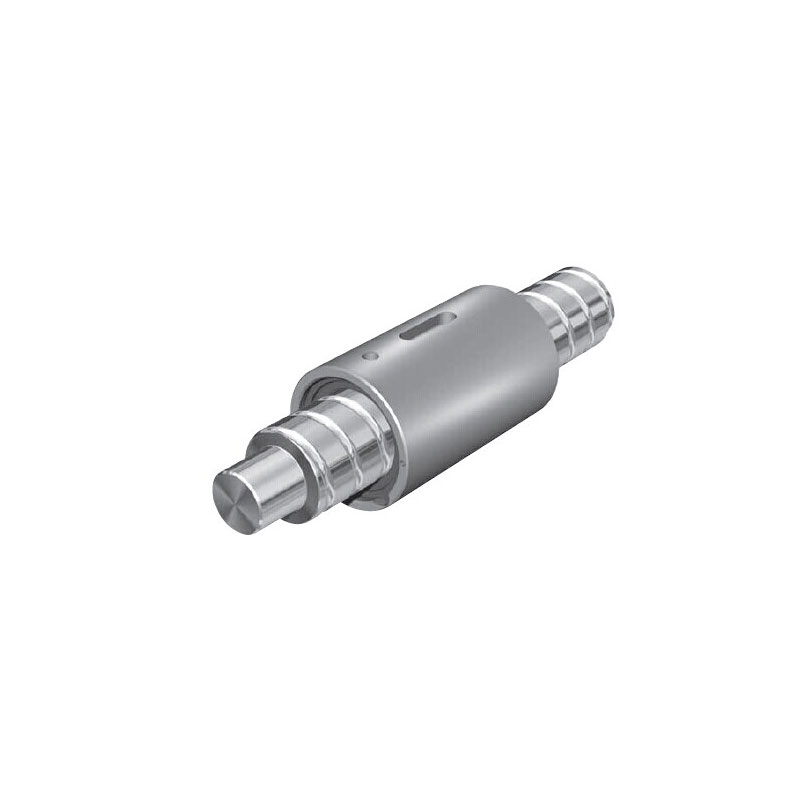

力士乐圆柱式单螺母 ZEM-E-S

带标准密封

加强型密封参见第126页

带轴向间隙或缩减的轴向间隙

预紧2%，3%，5%

用于精密的滚压丝杠SN-R

公差等级T5，T7，T9

部份产品有左旋螺纹的款式可供货

    规格                         部件号
8 x 2.5  R x 1.588-3      R153223002,REXROTH/STAR螺母
12 x 5  R x 2-3             R153246023,REXROTH/STAR螺母
12 x 10  R x 2-2           R153249022,REXROTH/STAR螺母
16 x 5  R x 3-4             R151201022,REXROTH/STAR螺母
16 x 10  R x 3-3           R151204012,REXROTH/STAR螺母
16 x 16  R x 3-2           R151206012,REXROTH/STAR螺母
20 x 5  R x 3-5             R151211012,REXROTH/STAR螺母
25 x 5  R x 3-4             R151221012,REXROTH/STAR螺母
25 x 10  R x 3-4           R151224012,REXROTH/STAR螺母
25 x 25  R x 3.5-2        R151228012,REXROTH/STAR螺母
25 x 25  R x 3.5-3        R151228052,REXROTH/STAR螺母
32 x 5  R x 3.5-4         R151231012,REXROTH/STAR螺母
32 x 10  R x 3.969-5    R151234012,REXROTH/STAR螺母
32 x 20  R x 3.969-2    R151237012,REXROTH/STAR螺母
32 x 20  R x 3.969-3    R151237052,REXROTH/STAR螺母
32 x 32  R x 3.969-2    R151239012,REXROTH/STAR螺母
32 x 32  R x 3.969-3    R151239052,REXROTH/STAR螺母
40 x 5  R x 3.5-5         R151241012,REXROTH/STAR螺母
40 x 10  R x 6-4          R151244012,REXROTH/STAR螺母
40 x 20  R x 6-3          R151247012,REXROTH/STAR螺母
40 x 40  R x 6-2          R151249012,REXROTH/STAR螺母
40 x 40  R x 6-3          R151249052,REXROTH/STAR螺母
50 x 5  R x 3.5-5         R151251012,REXROTH/STAR螺母
50 x 10  R x 6-6          R151254012,REXROTH/STAR螺母
50 x 20  R x 6.5-3       R151257012,REXROTH/STAR螺母
63 x 10  R x 6-6          R151264012,REXROTH/STAR螺母
